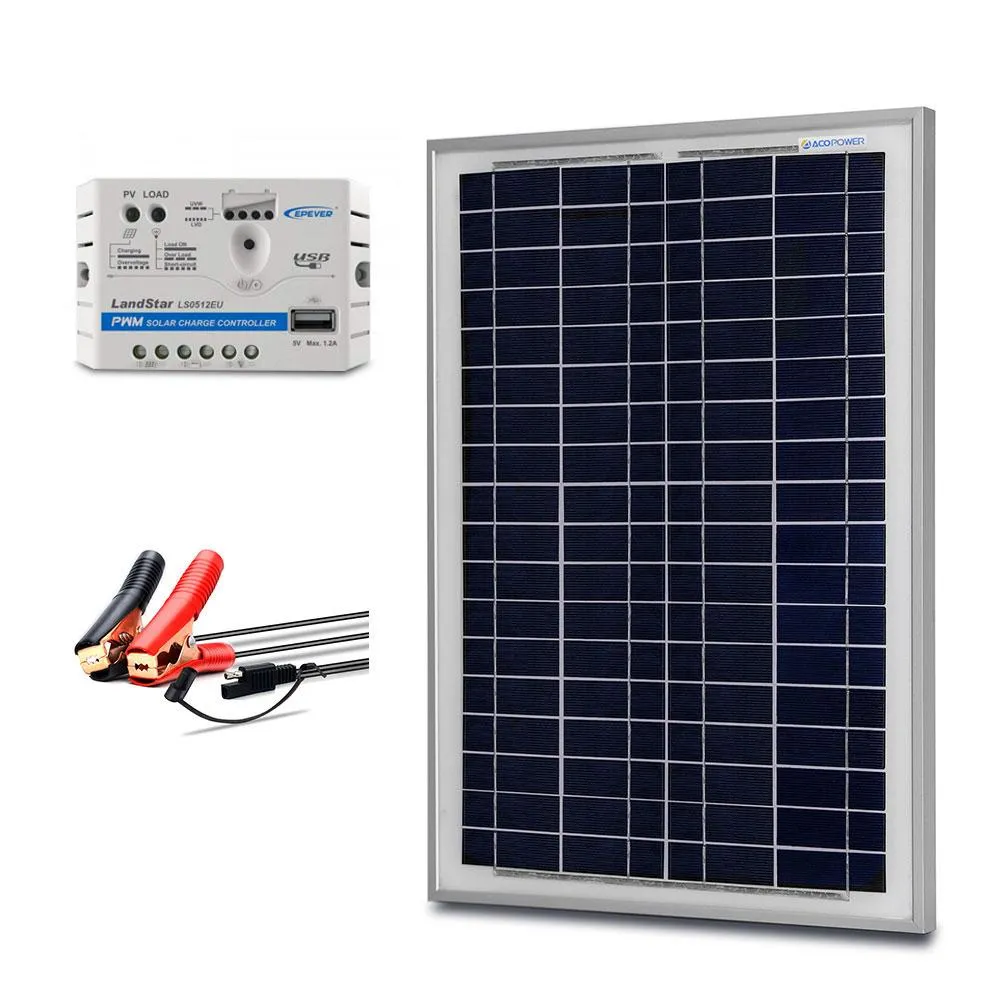

• Solar Kit : Used High Modules Conversion Efficiency 25W Poly Solar Panel. Provides Up to 25W Designed specifically for customers new to solar. Easy and convenient to install with pre-drilled holes on panels
• Upgraded Charge Controller : It has been Upgraded to Positive Grounding Controller New 5A PWM Charge Controller .The 5A charge controller with USB output for 12V battery charge. You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off Grid Applications and Safety.
• Best free & Clean Power Resource Used in Various Off-Grid Applications that Include 12 arrays, WaterPumping Systems, Signaling Systems and other Off-Grid

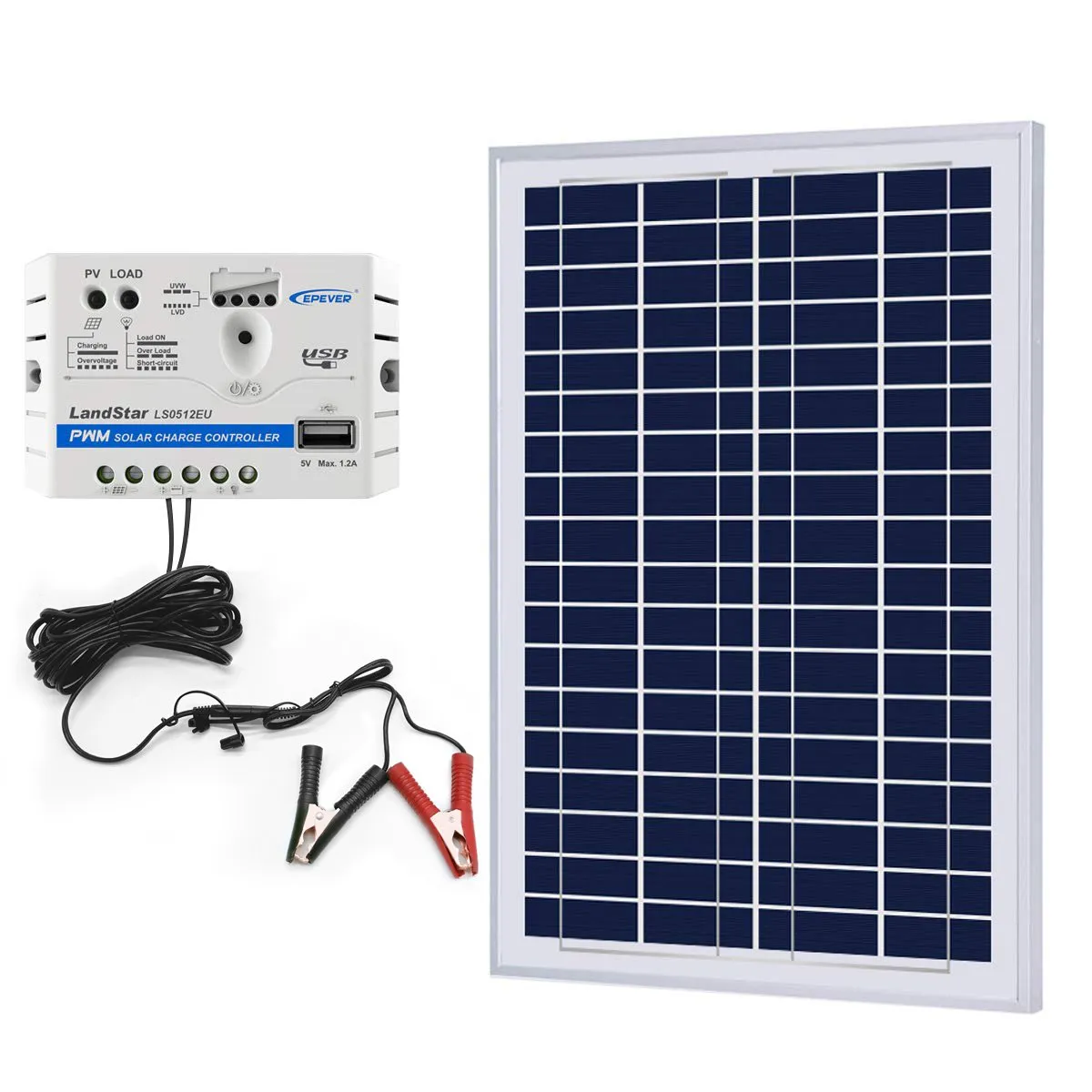

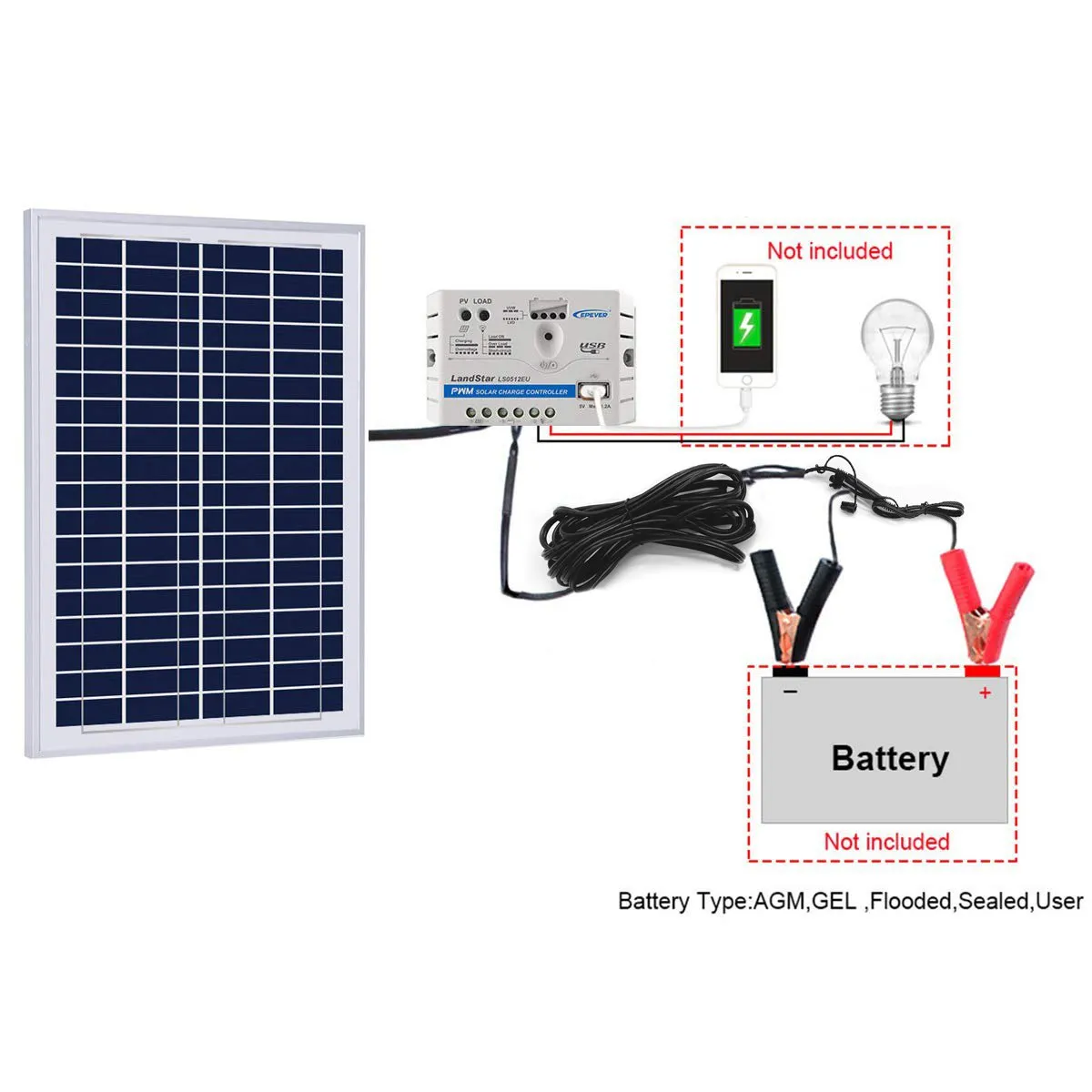

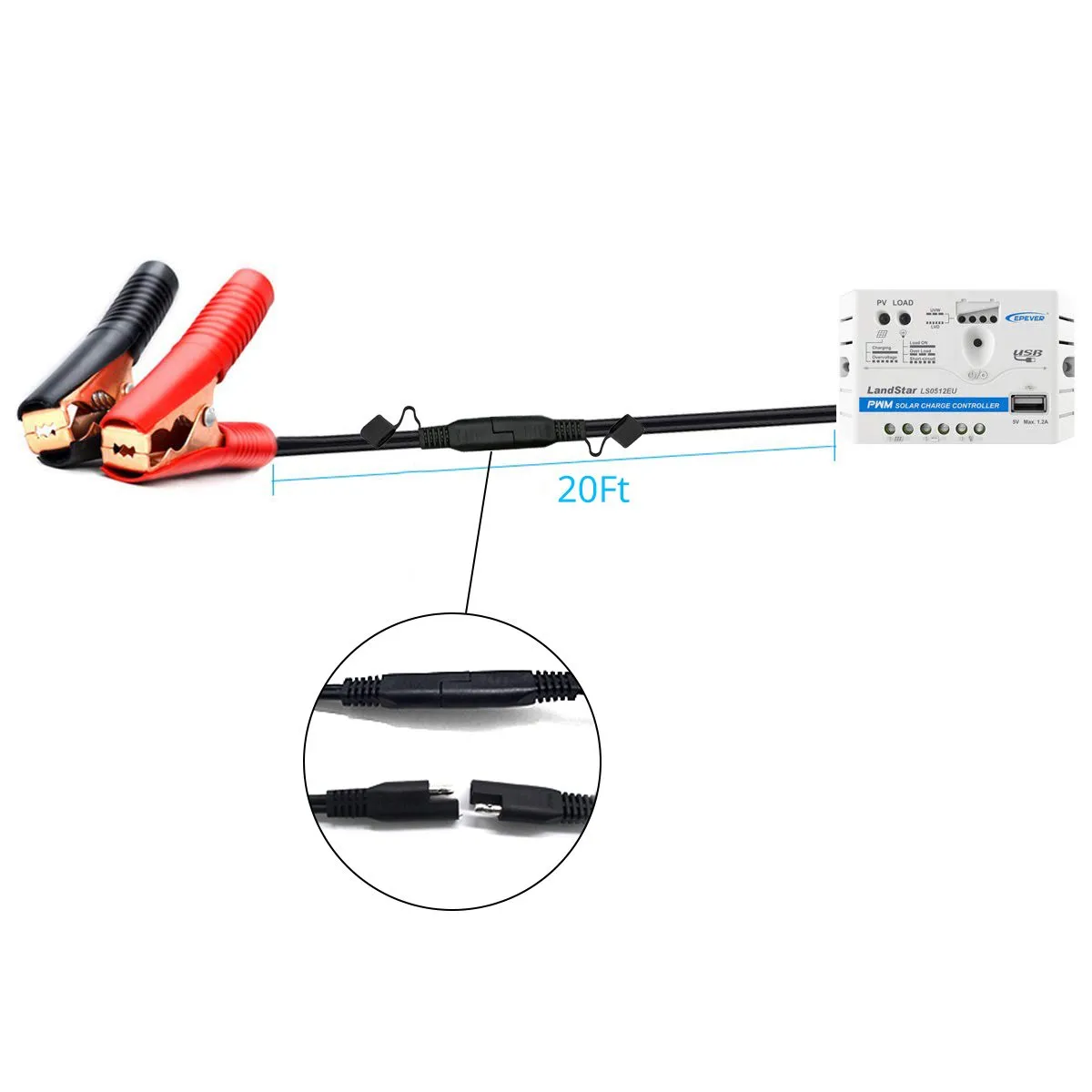

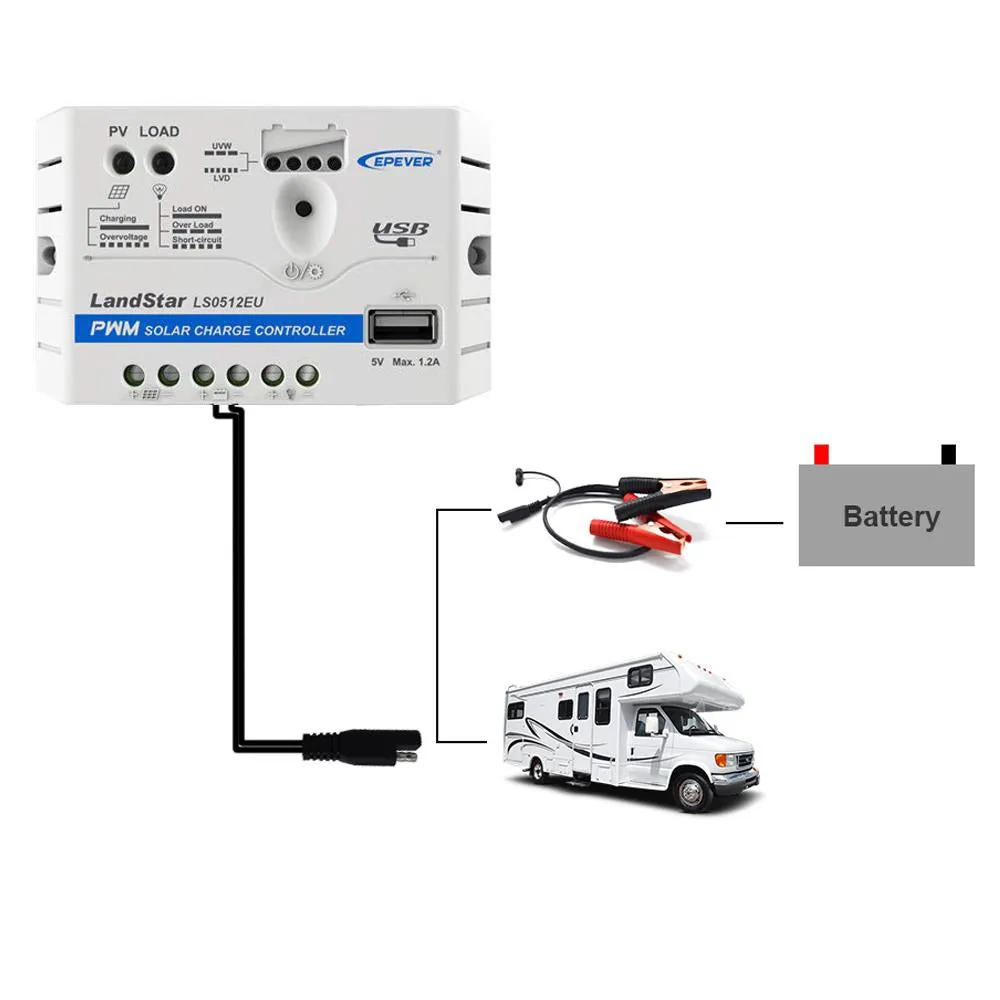

• Safety: Comes with a 25W 12V polycrystalline solar panel, a 5A PWM Charge Controller with SAE Connectors and Alligator Clamps . 20ft cable from charge controller to battery; SAE connector for pre-wired 2 Pin socket in sidewall of RV；Alligator clamps- to clip to your battery in 10 seconds with protection. The alligator clamps won't have voltage and current until a proper battery is connected, avoid any touching accidents.
• Application: Basic Component for Off-Grid Solar Panel 12V/24V/36V/48V System, Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, Cabins, Caravan, Cars, Green House Solar Systems. Withstand High Wind (2400Pa) and Snow Loads (5400Pa); Lightweight Anodized Aluminum Frame and Reinforced Safety and anti-Reflection Coated Glass 3.2mm Thick and Waterproof IP-65 Rated Junction Box which Allows The Panel Lasts for a Long Time.
•  Warranty: 5 years material and workmanship warranty and 25 years power output warranty; Accessories, 1 year material & workmanship warranty.

Product Specification

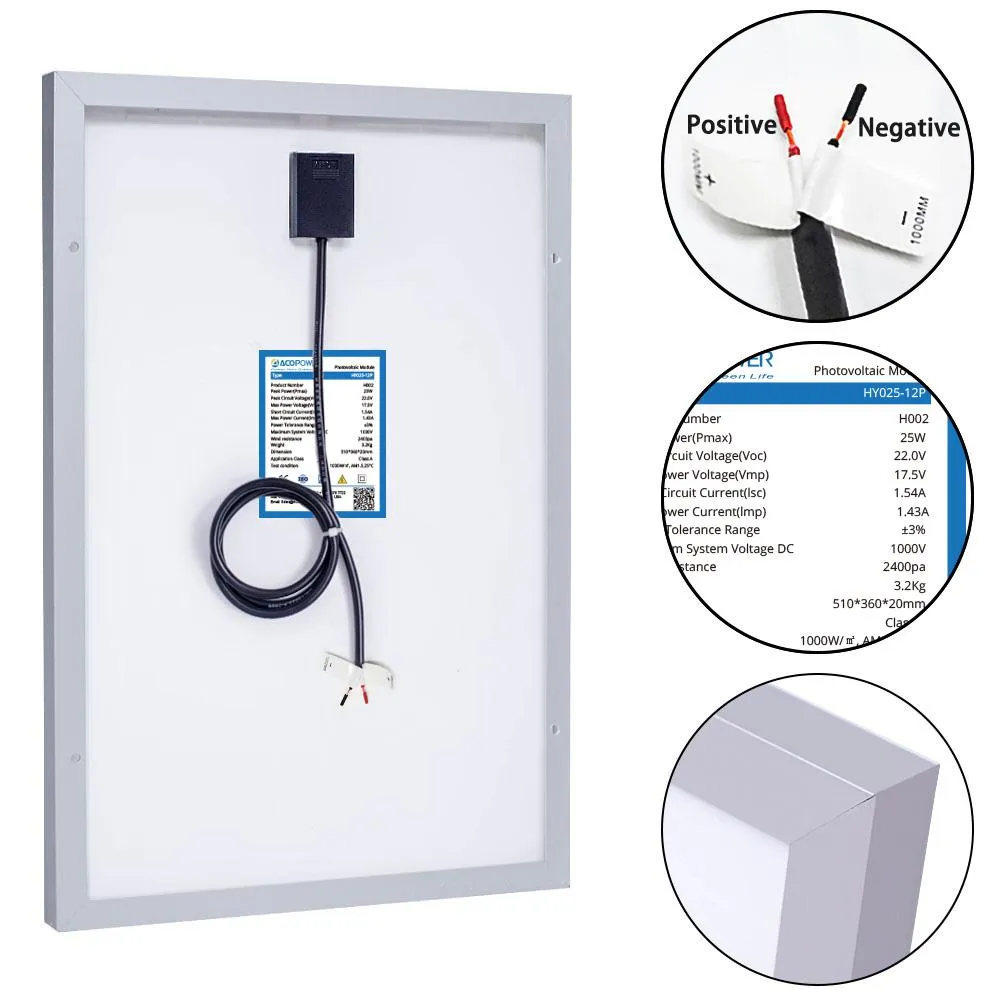

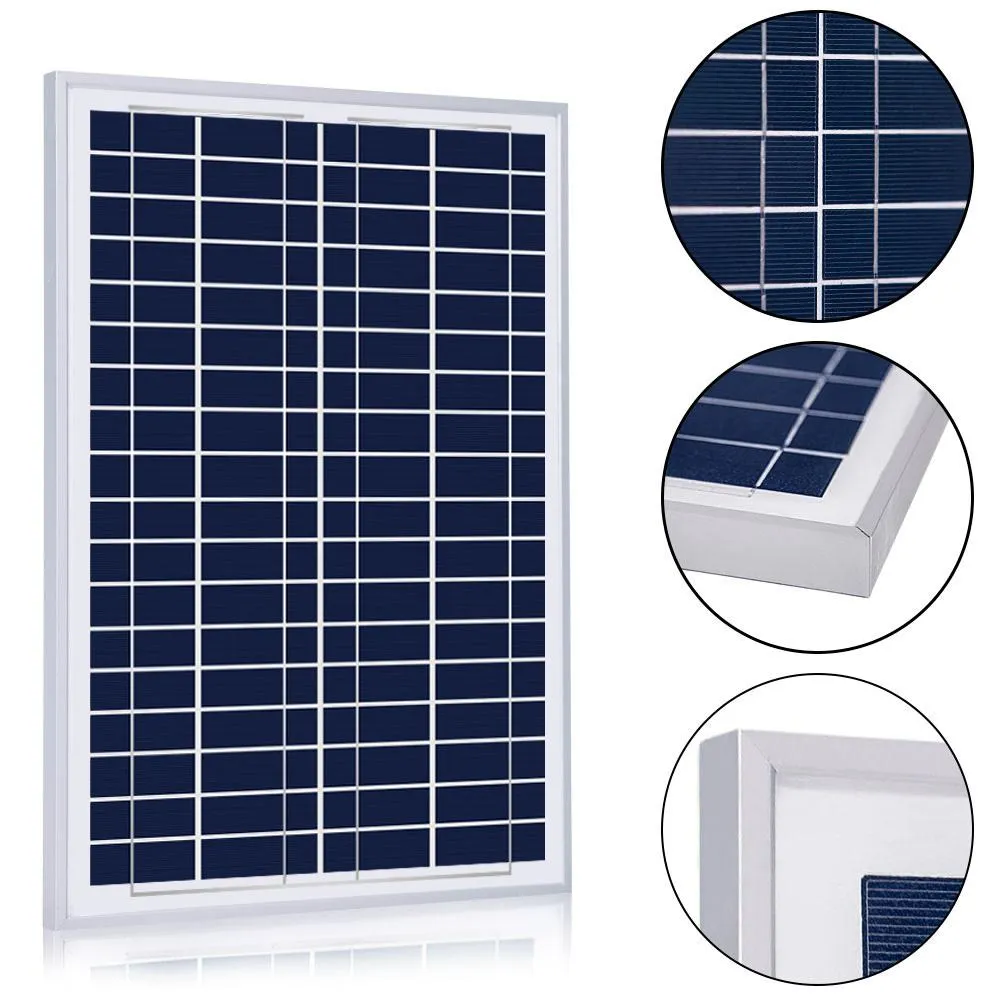

ACOPOWER 25W Polycrystalline Solar Panel
Peak Power (Pmax):25W
Peak Circuit Voltage(Voc):22V
Max Power Voltage(Vmp):17.5V
Short Circuit Current(Isc):1.54A
Max Power Current(Imp):1.43A
Maximum System Voltage DC:1000V
Application Class:Class A

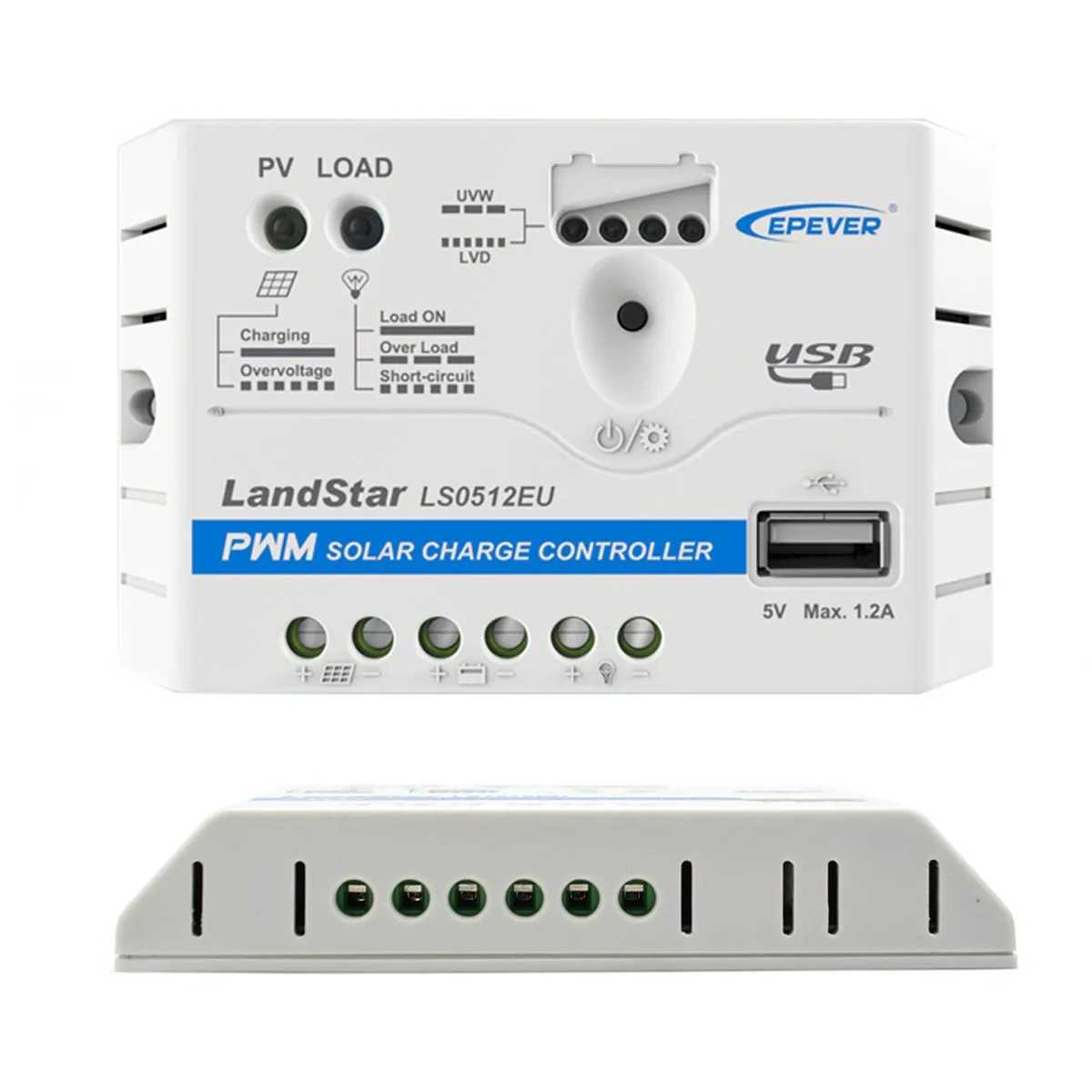

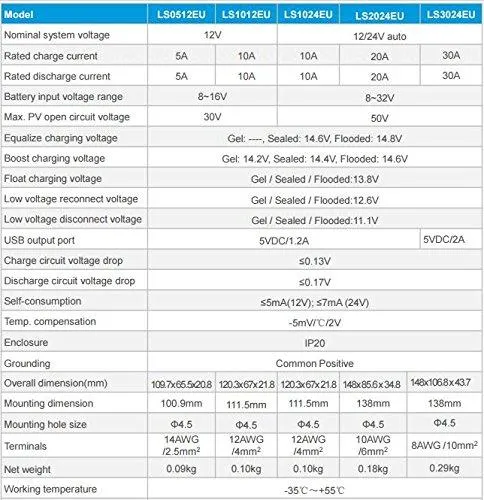

5A PWM Charge Controller (Positive Grounded)
Working Voltage :12V
Working Current:5A
Working Mode: PWM Charging
Add a 5V/1.2A USB Terminal Output
Battery Type Options?Sealed, Gel, Flooded,

Package List:
1 x LS0512EU Solar Charging Controller with SAE adapter and Alligator Clips
1 x HY025-12P Solar Panel
2 x User Manual

Application Scope
Courtyard lighting.
Small household lighting system.
Street lighting.
Portable solar power.
Solar Pump
All small power electrical devices & small PV system.
